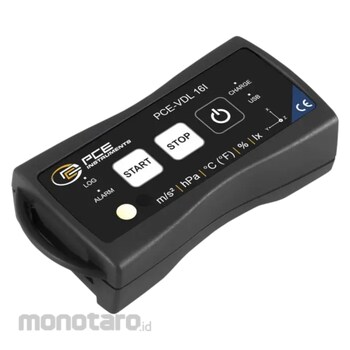

Vibration Analyzer PCE-VDL 16I
With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light
The vibration analyzers of the PCE-VDL series are available in two versions. The vibration analyzer PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.
Shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
Delivery Scope:
1x Vibration analyzer PCE-VDL 16I
1x Data cable USB – USB Micro
1x 32 GB SD memory card
1x SD card ejector tool
1x USB pen drive with PC software and user manual
PCE Instruments Multifunction Datalogger
#Grup produk P112249469
Spesifikasi
| 3 Axes Acceleration Accuracy (g) | 0.24 |
|---|---|
| 3 Axes Acceleration Maximum Sampling rate (Hz) | 800 |
| 3 Axes Acceleration Measuring Range (g) | ±16 |
| 3 Axes Acceleration Resolution (g) | 0.00390625 |
| Air Pressure Accuracy (mbar) | ±2 (750-1100); otherwise ± 4 |
| Air Pressure Maximum Sampling Rate (Hz) | 1 |
| Air Pressure Measuring Range (mbar) | 10-2000 |
| Air Pressure Resolution (mbar) | 0.02 |
| Humidity Accuracy | ± 1.8% r.H. |
| Humidity Maximum Sampling Rate (Hz) | 1 |
| Humidity Measuring Range | 0-100% R.H. |
| Humidity Resolution (%RH) | 0.04 |
| Light Maximum Sampling Rate (Hz) | 1 |
| Light Resolution (Lux) | 0.045 |
| Temperature Accuracy (°C) | ± 0.2 |
| Temperature Measurement Range (°C) | -20 to 65 |
| Temperature Resolution (°C) | 0.01°C |
