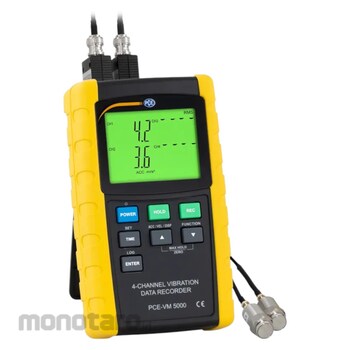

Vibration Recorder PCE-VM 5000 display and storage of acceleration, speed and displacement measurement of vibrations / 4-channel vibration Vibration Meter indicates 4 channels of simultaneous vibration metering through remote vibration sensors
The 4-channel PCE-VM 5000 Vibration Recorder is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Vibration Meter is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Vibration Meter indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Vibration Meter measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement. The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Vibration Meter you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.
Delivery Scope:
1 x 4-channel PCE-VM 5000 Vibration Recorder
2 x Sensors with cable and magnet foot (1.2m / 3.9 ft)
8 x 1.5V AA batteries
1 x Instruction manual
1 x Transportation case
PCE Instruments 4-channel Vibration Datalogger
#Grup produk P112244941
Spesifikasi
| Audio Output Point | Mini stereo jack socket; Max. voltage: 2 V; Output resistance: 100 Ohm |
|---|---|
| DATA HOLD Function | Holds displayed measured value |
| Datalogger Sampling Rate | Automatic: 1-3,600 seconds; Manually: at the push of a button |
| Display Size (inch) | 3.22x2.4 (LCD with background light) |
| Frequency Range (Hz-kHz) | 10-1 |
| Main Unit Dimensions (mm) | 203x76x38 |
| Maximum Hold | Acceleration, Speed: Measures / updates the max. value; Expansion: Measures / updates the p-p value |
| Maximum Hold Reset | Push-button activation |
| Measurement Type | Speed, acceleration, expansion |
| Measurement Units | Acceleration: m/s², g, ft/s²; Speed: mm/s, cm/s, inches/s; Expansion: mm, inches |
| Memory Card (GB) | SD memory card (1-16) |
| Number of Channel | 4 input channels |
| Operating /Charging Time | Normal operation: ca. 12 mA dc; With the background lighting switched off and the data logger switched on: ca. 35 mA dc |
| Operating Humidity | 85 % r.H. max. |
| Operating Temperature (°C) | 0 to +50 |
| Peak Hold | Acceleration, Speed: Measures / updates the max. value; Expansion: Measures / updates the p-p value |
| Power Consumption (mAh) | NiMH battery 3 x 2700 |
| Power Supply | 8 x 1.5 V AA batteries or 9 V power adapter |
| Probe Dimensions (mm) | 16x37 |
| Zero Function | Push-button activation for acceleration-(RMS) measurements |
