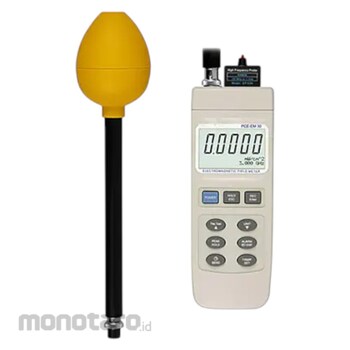

PCE-EM 30 Environmental Electromagnetic Radiation Tester
Double-axis electromagnetic field (EMF) detector with data-logging functionality / Comes with two external sensor probes (for low and high frequency ranges)
PCE-EM 30 is a digital portable 2-axis environmental electromagnetic radiation tester or EMF detector used to measure electromagnetic radiation generated by electronic devices and electric installations. This double-axis EMF meter provides greater precision than single-axis models as well as affords the ability to assess EMFs from more than one source at a time.
Note: USB data cable Incl. software VT-204-SW required for data transfer to PC - please see accessories tab for details.
Delivery Scope:
1 x PCE-EM 30 environmental electromagnetic radiation tester
2 x external sensor probes
2 x frequency range connectors
1 x 9 V battery
1 x carrying case
1 x user manual
PCE Instruments 3-Axis EMF Detector
#Grup produk P112244808
Spesifikasi
| Accuracy (dB) | ±2 |
|---|---|
| Alarm | Acoustic signal when limit value is exceeded |
| Bandwidth/Frequency Range of the Probe EP-03H | 100 MHz-3 GHz |
| Bandwidth/Frequency Range of the Probe EP-04L | 100 kHz-100 MHz |
| Display Size (inch) | 2.28x1.34 (LCD) |
| External Sensor Probe Types | Triple axis |
| Inital Value | > 1 V/m; > 0.03 W/m²; > 0.0003 mW/cm² |
| Internal Memory | 16000 data records |
| Limiting Value | Adjustable |
| Measuring Range | 0-199.99 V/m; 0-99.999 W/m²; 0-9.9999 mW/cm² |
| Meter Dimensions (mm) | 200x76.2x36.8 |
| Operating Conditions (°C) | 0 to 50 (up to 80 % relative humidity (RH)) |
| Power | 9 V battery |
| Probe Dimensions (mm) | 70x240 |
| Range Selection for the Probe EP-03H | 900 MHz, 1 GHz, 1.8 GHz, ; 2.4 GHz, 2.45 GHz, 3 GHz |
| Range Selection for the Probe EP-04L | 100 kHz, 200 kHz, 500 kHz, 1 MHz, ; 10 MHz, 13.56 MHz, 100 MHz |
| Resolution | 0.01 V/m; 0.001 W/m²; 0.0001 mW/cm² |
