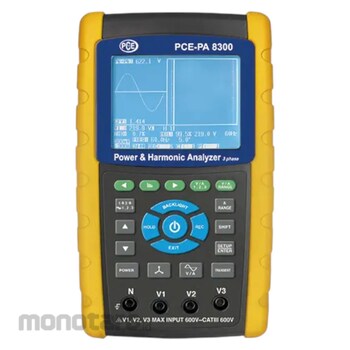

PCE-PA 8300 HVAC Meter
3-phase / 3 current clamps / LCD graphic display / SD card memory
The PCE-PA 8300 is a HVAC Meter that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 HVAC Meter is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.
Set 1: Includes 3 current clamps for measurements up to 1200 A AC
Delivery Scope:
1 x PCE-PA 8300 HVAC Meter
3 x Current clamps (Set 1)
4 x Insulated alligator clips
4 x Safety test lines
6 x 1.5 V AA batteries
1 x 9 V mains adapter
1 x SD memory card
1 x Carrying case
1 x User manual
PCE Instruments 3 Phase Power & Harmonics Analyzer
#Grup produk P112244783
Sebelum PPN:
Rp149.999.900 - Rp159.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Clamp Jaw Dimensions (mm) | 86 |
|---|---|
| Current Clamp Dimensions (mm) | 210x64x33 |
| Current drain (mA) | Measurement Device = 300 DC; Current Clamp = 34 DC |
| Data Logging Function | logging; with real-time speed on SD memory card |
| Data Output | per USB or RS232, depending on connection cable |
| Data Storage | SD memory card |
| Device Dimensions (mm) | 225x125x64 |
| Display Size (mm) | 94.0 point-matrix LCD (320x240 pixel) with LED background lights |
| Input Resistance AC V (MΩ) | 10 |
| Maximum Wire Diameter (mm) | 50 |
| Operating Frequency of Current Clamp (Hz-kHz) | 40-1 |
| Operating Temperature (°C) | 0 to +50 |
| Overload Protection | AC; V; AC A |
| Refresh Interval (s) | 1 |
| Safety Standards | IEC1010CAT; III 600V |
| Surrounding Humidity | < 80% RH; 8 x 1.5V AA batteries |
| Tested Operating Frequency of Current Clamp (Hz) | 45-65 |
| Voltage Supply (V) | 9 (adapter) |
