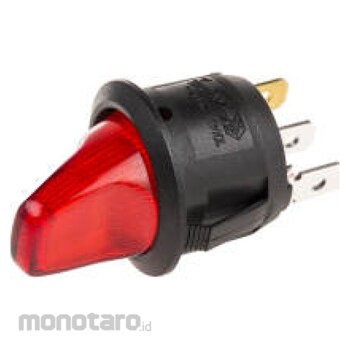

RS PRO SPST Panel Mount Illuminated Red Paddle Toggle Switch
A high-quality paddle toggle switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case to UL94V-2 with a tough Polycarbonate button for a paddle switch fit for industrial and commercial environments.
The RS PRO illuminated toggle switch features a black body with a red illuminated paddle when in the on position and is intended for panel mounting into a 20.2mm diameter cut out using the snap in quick connectors for easy installation. Designed in a latching action which means that once it is set to a position it stays in position and built with 4.8 x 0.8mm quick connect terminals for easy installation.
The panel mount toggle switch is sealed for protection against moisture and water, capable of operating at temperatures of up to 85° C and features compact dimensions of 23 x 40mm including the toggle switch. A hardwearing toggle switch ideal for busy panels.
Standards and Approvals: RoHS compliant
RS PRO Toggle Switch Panel Mount
#Grup produk P112233574
Spesifikasi
| Mounting Type | Panel Mount |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and BenefitsToggle switch
Red illuminated
On-Off positions
Panel mount
4.8 x 0.8 mm quick connect terminals
125 V (16A)/ 240 V ac (10A) mains rated
Make and break cycle
Contact resistance of 50mΩ max
Operating temperature of -20°C to 85°C
Nylon 66 case UL94V-2
Minimum insulation resistance of 500MΩ
Minimum dielectric strength of 1500 Vrms
