M12 Connector Cable Assembly
Brought to you under the trusted RS Brand, this range of M12 connector cable assemblies are commonly used in sensor and automation equipment. Fitted with a secure coupling nut, these RS M12 cable assemblies are an ideal solution for when reliable data transference is needed.
The M12 connector boasts a high degree of environmental protection, and is ideal for industrial use, with applications ranging from process control to commercial electronics.
Available in this Range:
• Stock No: 877-1202 has an LED output indication (Power= Green, Output=Red)
• Stock No: 877-1211 has an LED output indication (Power= Green, NO O/P= Amber, NC O/P= Red)

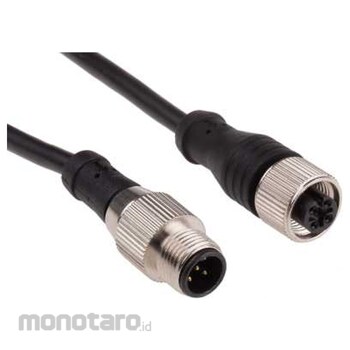

RS PRO Straight Female M12 to Straight Male M12 Sensor Actuator Cable
#Grup produk P112232274
Spesifikasi
| American Wire Gauge (AWG) | 22 |
|---|---|
| Cable shape | Multicore |
| Connector A | M12 |
| Connector A - Gender | Female |
| Connector A Housing Gender | Socket |
| Connector A Number of Contacts | 5 |
| Connector A Orientation | Straight |
| Connector B | M12 |
| Connector B - Gender | Male |
| Connector B Housing Gender | Plug |
| Connector B Number of Contacts | 5 |
| Connector B Orientation | Straight |
| Cross Section Area (mm²) | 0.34 |
| Current Rating (A) | 4 |
| IP Rating | IP67 |
| Length (m) | 5 |
| Maximum Operating Temperature (°C) | 75 |
| Minimum Operating Temperature (°C) | -25 |
| Number of Cores | 5 |
| Outer Diameter (mm) | 5.5 |
| Outer Sheath Material | PVC |
| Sheath Color | Black |
| Sheath Material | Polyurethane PUR |
| Shielding | Unshielded |
| Voltage Rating (V) | 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
