From the trusted RS PRO brand, this SMA connector is a robust and reliable solution to RF connection and has a DC-18 GHz frequency range. It is edge mounting, so-called because it is designed to be mounted efficiently on the edge of a printed circuit board.
With gold plated beryllium copper contacts, this high-performance SMA end launcher assures a high-quality signal connection.
• Stock number 526-5785 is a 6.35 x 6.35mm square and accepts a PCB thickness of 1.57mm
Applications
This SMA connector socket is designed for use from DC to 18 GHz, and is designed to connect to appropriate coaxial cable assemblies and SMA plugs with a secure screw-on action. This connector would typically be used in Wi-Fi antenna systems.
This edge mount jack is designed to be used in board-to-board applications, and can be secured and soldered for a sturdy connection.

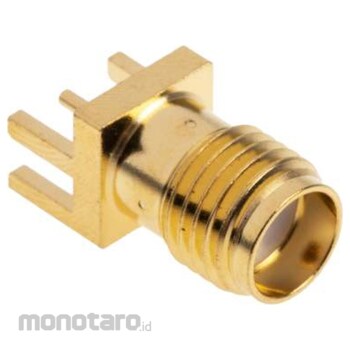

RS PRO Straight Edge Mount SMA Connector Jack
#Grup produk P112232210
Spesifikasi
| Body Orientation | Straight |
|---|---|
| Body Plating | Gold |
| Bulkhead | No |
| Coaxial Connector Type | SMA Connector |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Gender | Female |
| Impedance (ohm) | 50 |
| Mounting Type | Edge Mount |
| Operating Frequency (GHz) | 0 to 18 |
| Size | Subminiature |
| Termination Method | Solder |
| polarity | Normal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• End launcher SMA Jack
• Subminiature RF Coaxial Socket
• Gold plated body and contact
• Teflon insulator
• 50 Ohm Impedance
