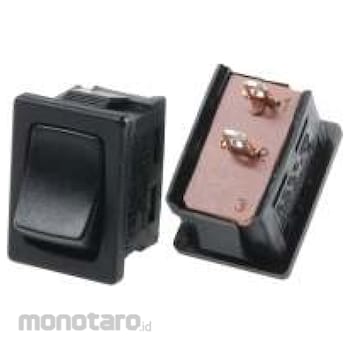

RS Miniature Rocker Switches
Miniature SPST rocker switches, available in a wide variety of markings and colour options
Panel cut out 19.2 x 13mm
Fitted with 4.8mm blade style terminals (except stock no. 419-726 which has solder tag terminals)
Snap-in mounting, easy to install into panel
Nylon Housing to UL 94V-2 with silver plated brass terminals
Approvals
CSA (File no. UL45128), VDE (File no. 11037-4401), UR, ENEC, CQC
RS PRO SPST Latching Rocker Switch Panel Mount
#Grup produk P112230878
Spesifikasi
| AC Voltage Rating (V) | 125, 250 |
|---|---|
| Actuator Color | Black |
| Actuator Shape | Rectangular |
| Case Material | Nylon |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Contact Material | Silver Plated Brass |
| Contact Resistance (miliΩ) | 50 |
| Illuminated | No |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -20 |
| Mounting Type | Panel Mount |
| Operating Temperature Range (°C) | -20 to +85 |
| Panel Cutout Height (mm) | 13 |
| Panel Cutout Size (mm) | 13x19.8 |
| Panel Cutout Width (mm) | 19.8 |
| Switch Operation | Latching |
| Terminal Type | Quick Connect |
| contact Current Rating (A) | 16 @ 125 VC |
