RS Interface Relay Modules
The LCIS System Interface Relay Modules cannot only switch and isolate they also undertake other requirements such as measuring, controlling, regulating, multiplying and amplifying. Simplified installation options via insulated bridges in various pin configurations which reduce wiring time. All LCIS Interface relays can be used in distribution boxes. APPROVALS : UL, CSA, GLSelection of connections via universal connection technology with push in or screw connection
Every push in connections has inspection openings with a diameter of 2 mm guaranteeing secure signal tracking.
Relays can be labelled up to a maximum of 24 characters
Reduced wiring time
Low construction depth of 71 mm
Suitable for temperatures of -40°C to +85°C

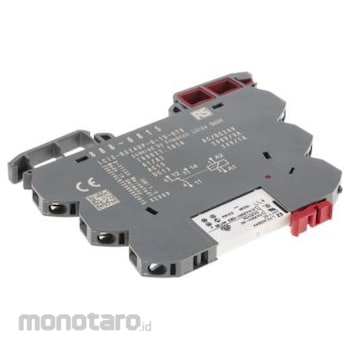

RS PRO SPDT Interface Relay Module DIN Rail Mount
#Grup produk P112230656
Spesifikasi
| Coil Voltage (V) | 24 AC/DC |
|---|---|
| Contact Configuration | SPDT |
| Contact Material | Silver Alloy |
| Depth (mm) | 76 |
| Height (mm) | 93 |
| Length (mm) | 6.2 |
| Maximum Operating Temperature (°C) | 60 |
| Mechanical Life (operations) | >50000000 |
| Minimum Operating Temperature (°C) | -25 |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Relay Switching Classification | General Purpose Relay |
| Standards Met | CSA, GL, UL |
| Terminal Type | Screw |
