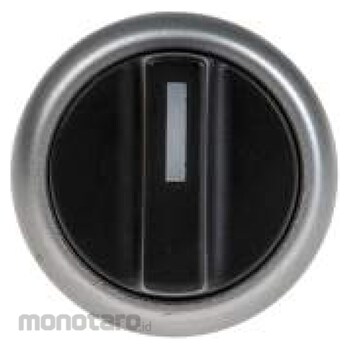

RS PRO 2 Position Selector Switch – (1RT) 22 mm Cutout Diameter
This RS PRO selector switch is a versatile two-position switch supplied in a complete contact block. It incorporates one SPNO (Single Pole Normally Open) and one SPNC (Single Pole Normally Closed) relay output type. You can see switches like this one used in a variety of applications in the automotive and construction industries.
The switch has a built-in contact block and features a chrome collar for added protection. The product has an Ingress Protection (IP) rating of IP65, which means it's protected from dust and low-pressure jets of water.
It's a panel mounting and screw terminal type of selector switch so you can easily connect it and mount it to your panel. It complies with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements to ensure the hazard of a discharge is minimised.
RS PRO Selector Switch
#Grup produk P112229155
Spesifikasi
| Actuator Type | Selector Switch |
|---|---|
| Contact Configuration | 1 CO |
| Cut-out Diameter (mm) | 22 |
| Illuminated | No |
| Maximum AC Voltage (V) | 230 |
| Maximum Current (A) | 6 |
| Number of Keys | 2 |
| Selector Switch Type | Selector Switch Complete Unit |
| Terminal Type | Screw |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Contact configuration of 1RT
• Cutout diameter of 22 mm
• Not illuminated
• IP (Ingress Protection) rating of IP65
• Maximum voltage of 230 V AC
• Maximum current of 6 A
• Two keys
• Two positions
• Stay put switch actuation
• Screw terminal type
