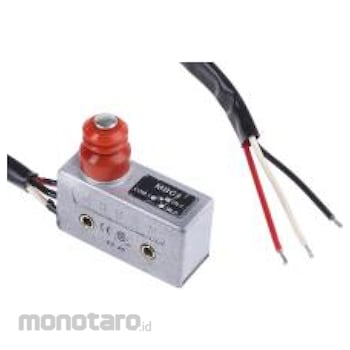

RS PRO SP-NO/NC Plunger Microswitch, 15 A @ 250 V AC
Common in the home as well as industrial premises, microswitches are often used as safety devices. The single-pole changeover on the RS PRO microswitch lets you use it to switch between two electrical circuits. For example, a popular use is opening up circuits when needed to prevent a machine being turned on.
The snap-acting switch is protected by a robust metal casing. Protected by a detachable, insulated cover plate, the M3 screw terminals are located in 3.96 mm wide wiring channels. The beryllium copper trident spring operating mechanism is corrosion-resistant, and the fine silver contacts ensure high conductivity.
IP54-rated for protection against dust and accidental splashes, this unit conforms to IEC 1058-1 as a reliable, safe switch. Frequent uses for this type of microswitch include safety switches on automatic doors or in industrial control circuits.
RS PRO Plunger Micro Switch Pre-wired Terminal
#Grup produk P112226918
Spesifikasi
| Actuator Type | Plunger |
|---|---|
| Case Material | Metal |
| Contact Configuration | SP-NO/NC |
| Contact Material | Fine Silver |
| IP Rating | IP54 |
| Mechanical life | 1000000 Operations |
| Release Force (gf) | 170 |
| Standards Met | CE, CSA, IEC 1058-1 |
| Terminal Type | Pre-wired |
| Voltage Rating (V) | 250 AC |
| contact Current Rating (A) | 15 @ 250 VC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Microswitch
• Contact configuration SP-NO/NC
• Plunger type actuator
• Single-pole, changeover configuration
• Snap-action means the speed of travel of the contacts does not rely on the speed of actuation
• Robust metal casing is IP54-rated for resistance against dust and splashes
• Fine silver contacts offer excellent conductivity
• Screw terminal
• Contact current rating of 15 A at 250 V AC
• Operating force of 723 gms
• Release force of 170 gf
• Maximum overtravel of 4.6 mm
• Maximum pretravel of 1.5 mm
• Maximum movement differential of 0.08 mm
• Mechanical life of 1,000,000 operations
• Conforms to IEC 1058-1 standard as a safe and effective switch
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
