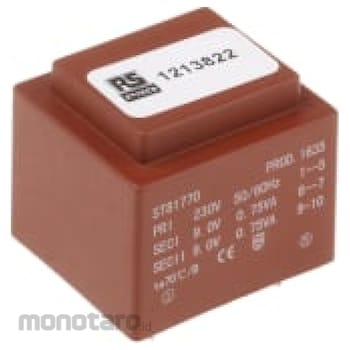

RS Pro PCB Standard Transformers
RS Pro PCB Standard transformers are low voltage mains transformers with a single 230 VAC 50/60Hz primary winding
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.
RS PRO PCB Mount PCB Transformer
#Grup produk P112225858
Spesifikasi
| Depth (mm) | 24 |
|---|---|
| Dimensions (mm) | 32.5x27.5x24 |
| Length (mm) | 32.5 |
| Maximum Operating Frequency (Hz) | 60 |
| Maximum Temperature (°C) | 130 |
| Minimum Operating Frequency (Hz) | 50 |
| Mounting Type | PCB Mount |
| Number of Outputs | 2 |
| Power Rating (V/A) | 1.5 |
| Primary Voltage Rating (V) | 230 AC |
| Secondary Voltage Rating (V) | 2x9 AC |
| Width (mm) | 27.5 |
