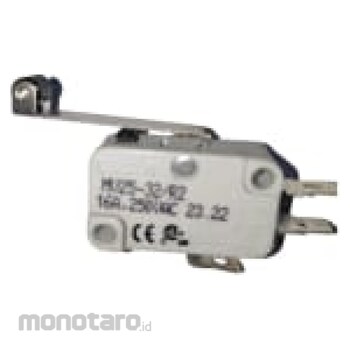

RS PRO 1NO/1NC Heavy Duty Miniature Micro Switch (16 A @ 250V)
The RS PRO versatile miniature Roller Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a 29.5mm Stainless Steel lever with free running Nylon roller actuator for a reliable and consistent action.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Roller switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.
RS PRO Long Roller Lever Microswitch Quick Connect Terminal
#Grup produk P112222073
Spesifikasi
| Actuator Type | Long Roller Lever |
|---|---|
| Case Material | Glass Filled Thermoplastic |
| Contact Configuration | SPDT |
| Contact Material | Silver/ Silver Plated |
| IP Rating | IP40 |
| Maximum Operating Temperature (°C) | 85 |
| Mechanical life | 1000000 Operations |
| Minimum Operating Temperature (°C) | -55 |
| Operating Force | 125g |
| Release Force (g) | 14 |
| Terminal Type | Quick Connect |
| Voltage Rating (V) | 250 |
| contact Current Rating (A) | 16 @ 250VC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and BenefitsNylon Roller actuator with 4.75 x 0.5mm quick connect terminals
25.9mm Stainless Steel Lever
Copper alloy Silver plated terminals
Contact Configuration SPDT
Contact Arrangement 1NO + 1NC
30% Glass filled flame retardant thermoplastic case (UL94 V0)
Positive snap action
Silver contacts
Total weight of 7.4g
Side mounted via two M3 screws
Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
