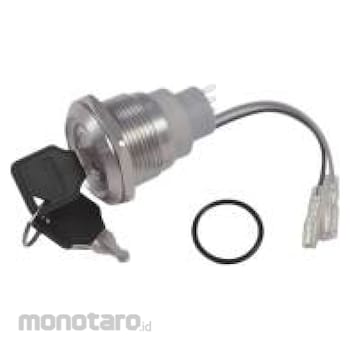

30mm Anti-Vandal Key Lock Switches
Anti-vandal key lock switches with ring illumination for indication. Three LED voltage types are available; 12V, 24V and 220V The illumination shows red when the switch is in the off position and green in the on position. The switches have an impact resistance rating of IK03, and a front panel protection rating of IP40. They are supplied with an LED resistor to protect from forward voltage fluctuations.The switch body and button are constructed from stainless steel with a varnish finish.
Electrical life: 50000 make and break operations at full load
Panel cut-out diameter: 30.2 mm
Keys can be removed in all positions
RS PRO IP40 Key Switch
#Grup produk P112220853
Spesifikasi
| Bezel Shape | Round |
|---|---|
| Case Material | Stainless Steel |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Depth Behind Panel (mm) | 37 |
| IP Rating | IP40 |
| Key Index Angle (°) | 90 |
| Maximum Operating Temperature (°C) | 55 |
| Mechanical life | 50000 Operations |
| Minimum Operating Temperature (°C) | -20 |
| Number of Positions | 2 |
| Operating Temperature Range (°C) | -20 to +55 |
| Standards Met | CE, cUL, UL |
| Switch Operation | Momentary |
| Terminal Type | Solder |
| Voltage Rating AC (V) | 250 |
| Voltage Rating DC (V) | 30 |
| contact Current Rating (A) | 5 |
