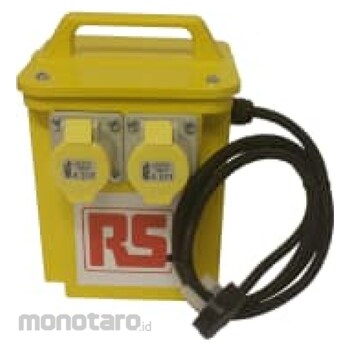

RS PRO Safety Isolating Transformers 230V ac-110V ac
This safety transformer from our own RS PRO brand is high quality, UK manufactured to BSEN (British Standard European Norm) 61588 and fully compliant with reduced low voltage regulations.
Applications
• Safety transformers are most commonly used for increasing low AC voltages at high current or decreasing high AC voltages at low current in electric power applications, and for coupling stages of signal processing circuits.
• Safety transformers could be used for isolation, transmission, distribution and utilization of alternating current electric power
Standards
BS EN 61558, BS EN 61558-20-23, BS EN 60529 ,RoHS Directive 2011/65/EU
Note
Continuous Rating: 1.65kVA
Intermittent Rating: 3.3kVA at maximum operating load with duty cycle 5 minutes on/15 minutes off.
RS PRO Intermittent 5 Mins on 15 Mins off Site Transformer
#Grup produk P112220792
Sebelum PPN:
Rp8.799.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Depth (mm) | 265 |
|---|---|
| Dimensions (mm) | 195x195x265 |
| Length (mm) | 195 |
| Maximum Operating Frequency (Hz) | 60 |
| Minimum Operating Frequency (Hz) | 50 |
| Mounting Type | Stand Alone |
| Output Current (A) | 2x16 |
| Plug Type | BS 1363 |
| Primary Voltage Rating (V) | 230 AC |
| Secondary Voltage Rating (V) | 110 (55V-0V-55V) |
| Socket Type | BS EN 60309 |
| Width (mm) | 195 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Glass reinforced polyester (GRP) case providing protection to IP44
• 110V centre tapped to earth (CTE) secondary winding
• 10amp thermal magnetic trip (hand resettable) reducing the chance of overload
• 2x 16A 110V Sockets
• Thermal overload protection
• Intermittent rating: maximum ration for operating load at 25% duty cycle (5 minutes on / 15 minutes off)
• 2 metre input mains lead with 13A UK domestic plug
