RS PRO Horizontal Float Switch, Stainless Steel, Direct Load, Float, 300 mm, 300 V
This RS PRO float switch detects the rise or fall of liquid in tanks or other containers. It will trigger a pump, alarm or some other peripheral device when it reaches a certain level.
The switch mounts horizontally and the unit's right-angled stem makes it suitable for shallower environments. This also means you can mount it at the top or bottom of your tank. With a direct-load, single-pole, single-throw (SPST) output, there's one input and output terminal – useful for simple on-off switches. It features a robust 300 mm cross-linked polyurethane (XLPE) cable and has an internal wire size of 22 AWG.
A durable silicone washer prevents the float from leaking and it has a corrosion-resistant stainless steel body. The device will operate safely from -10°C to +120°C. It can work with AC and DC voltage up to 300 V, current up to 500 mA and pressure of 10 bar Kg/cm².

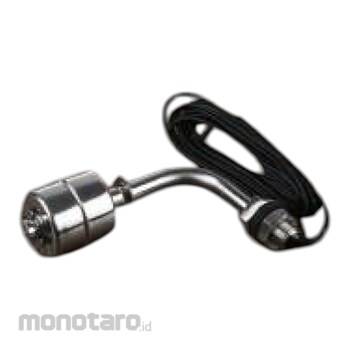

RS PRO Horizontal Stainless Steel Float Switch
#Grup produk P112219255
Sebelum PPN:
Rp2.299.900 - Rp5.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Body Material | Stainless Steel |
|---|---|
| Cable Length (mm) | 300 |
| Device Type | Float |
| Maximum Pressure (bar) | 10 |
| Mounting Type | Horizontal |
| maximum Current (mA) | 500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Horizontal, internal tank mount (top/bottom)
• XLPE cable of 300 mm for durability and heat resistance
• Internal wire size of 22 AWG
• Contact resistance of 200 mΩ
• Minimum operating temperature of -10°C
• Maximum operating temperature of +120°C
• Voltage rating of 300 V
• Maximum current of 500 mA
• Maximum pressure of 10 bar Kg/cm²
• Direct load switch
• Stainless steel body
• Cable length of 300 mm
• Warning: don't submerge cable entry point. Fit the switch through the wall of the tank with the cable outside
