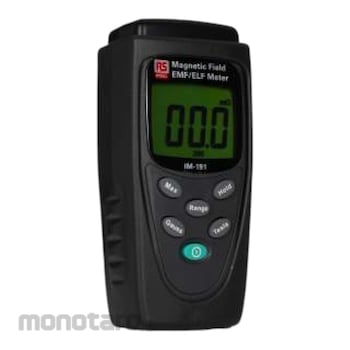

RS Pro Guass Meter IM-191
Our high quality brand RS Pro presents this handheld light weight Guassmeter, a great instrument for measuring magnetic fields of extremely low frequency (ELF) of 30 to 300 Hz. With a large user friendly LCD display of 3-1/2 digits it has a display range of 20, 200 and 2000. Display units are featured in micro-Tesla and mini-Guass, with an overload indication (LCD displays 'OL') and a low battery indication. With around 100 hours of battery life, measurement and testing is accurate and easy using the large soft press button panel.
SUPPLIED_WITH : 9 V battery, carrying case, user manual
RS PRO Gauss Meter
#Grup produk P112218335
Spesifikasi
| Battery Life (hour) | 100 |
|---|---|
| Battery Type | 9V |
| Best Accuracy (%) | ±2.5 |
| Dimensions (mm) | 130x56x38 |
| Frequency Range (Hz) | 30-300 |
| Height (mm) | 38 |
| Length (mm) | 130 |
| Magnetic Range (mG) | 200-2000 |
| Magnetic Range (μT) | 20-200 |
| Maximum Magnetic Measurement (mg) | 2000 |
| Maximum Magnetic Measurement (μT) | 200 |
| Maximum Operating Temperature (°C) | 40 |
| Minimum Magnetic Measurement (mg) | 200 |
| Minimum Magnetic Measurement (µT) | 20 |
| Minimum Operating Temperature (°C) | 5 |
| Operating Unit | Gauss, Tesla |
| Power Source | Battery |
| Resolution (mg) | 0.1 |
| Resolution (μT) | 0.01 |
| Width (mm) | 56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Resolution 0.1/1 mG or 0.01/0.1 μT
• Frequency response 30 Hz to 300 Hz
• Sensor, single axis
• Accuracy ± (2.5% + 6 digit) at 50/60 Hz
• Sample rate 2.5 times per second
• Data hold (HOLD) and Maximum (MAX) hold functions
• Operating temperature & humidity 5℃ to 40℃, below 80% RH
• Dimensions 130 x 56 x 38 mm
• Weight approximately 170 g
Application includes: Electric transmission equipment, Power lines, Air conditioners, Refrigerators, Computer monitors and Video/audio devices.
