RS PRO Dualslim Metal USB 2 A-A

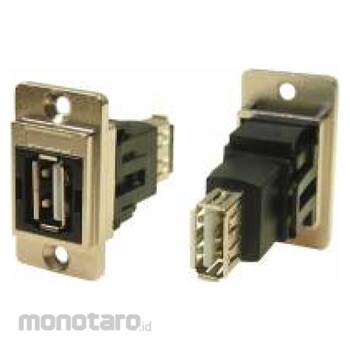

RS PRO Slim Dual Mounting USB 2.0 A-A Feedthrough Connector
From RS PRO a range of super high-quality USB 2.0 A-A feedthrough connectors. These slim dual panel mount connectors are commonly used in custom applications where high-speed data transfer connectivity is required. They have a slim profile so will only take up minimal space and can be front or rear mounted with enclosures or rack panel arrangements.
During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. These slim dual USB connectors are compatible with male USB 2.0 cables offering excellent transfer speeds to produce reliable transmissions in telecommunications and networking.
Specifications
Voltage rating: 30 V AC
Current rating: 1.5 A max
Contact resistance: 50 mΩ max
Insulation resistance: 20 mΩ min
Dielectric withstanding voltage: 500V AC
Operating Temperature: -20°C to 50°C
Variants
USB 2.0 A-A FT Nickel frame, CSK holes, RS stock no: 235-4754
USB 2.0 A-A FT Black metal frame, CSK holes, RS stock no: 235-4755
Applications
Telecommunication
Ethernet Network Interface
Audio Soundboard
Computers
