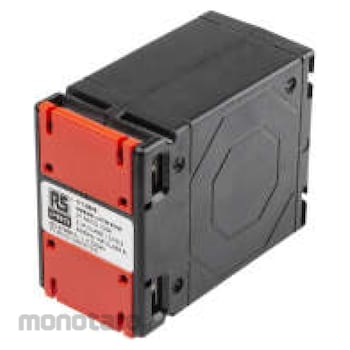

RS PRO Current Transformers
The RS PRO current transformer is clip fit square type and encapsulated with polycarbonate. This metering CT features sealable terminal covers and has a current ratio of 10:5. It is a surface mounted device.
Applications
• Commercial electric power distribution
• Electrical substations
Certifications
• IEC - 61010 - 2
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
RS PRO Base Mounted Current Transformer
#Grup produk P112212410
Spesifikasi
| Bore Size (mm) | 62x40 |
|---|---|
| Current Ratio | 10:5 |
| Dimensions (mm) | 62x40x78 |
| Input Current (A) | 10 |
| Maximum Temperature (°C) | 55 |
| Minimum Temperature (°C) | -5 |
| Mounting Type | Surface Mount |
| Output Current (A) | 5 |
| Overall Depth (mm) | 40 |
| Overall Height (mm) | 78 |
| Overall Width (mm) | 62 |
| Transformer Type | Base Mounted |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits• Accuracy class 1
• Cost-effective moulded case
• Operating temperature ranges between -5°C and 55°C
