Spesifikasi
| Braided | Yes |
|---|---|
| Colour | Red |
| Dielectric Strength (kV) | 1 |
| Expandable | No |
| Fire Behaviour | Halogen Free |
| Material | Acrylic Fibreglass |
| Maximum Operating Temperature (°C) | 155 |
| Minimum Cable Diameter (mm) | 6 |
| Minimum Operating Temperature (°C) | -25 |
| Sleeve Diameter (mm) | 6 |
| Sleeve Length (m) | 5 |
| Standards Met | IEC 60684-3, RoHS Compliant, UL 1441 |
| Wall Thickness (mm) | 0.35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

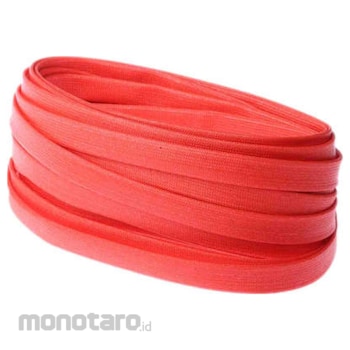

RS PRO Acrylic Resin Impregnated Braided Fibreglass Cable Sleeving
From RS Pro a high-quality Class F braided fibreglass cable sleeving or cable tubing impregnated with an acrylic resin to create a tough but flexible insulation material that offers highly effective cable protection. This cable sleeving has excellent chemical resistance along with a good temperature resistance and high electrical and mechanical strength. The sleeve is made from halogen-free materials so it won’t release toxic gases into the atmosphere when burnt and has excellent compatibility with Class F impregnating resins. This cable sleeve is easy to apply by simply routing your cables and wires through the inside. The flexibility qualities of this sleeving mean it is still able to maintain its electrical properties even after flexing.
From RS Pro a high-quality Class F braided fibreglass cable sleeving or cable tubing impregnated with an acrylic resin to create a tough but flexible insulation material that offers highly effective cable protection. This cable sleeving has excellent chemical resistance along with a good temperature resistance and high electrical and mechanical strength. The sleeve is made from halogen-free materials so it won’t release toxic gases into the atmosphere when burnt and has excellent compatibility with Class F impregnating resins. This cable sleeve is easy to apply by simply routing your cables and wires through the inside. The flexibility qualities of this sleeving mean it is still able to maintain its electrical properties even after flexing.
Warning
Dust or broken particles from this fibreglass sleeving can cause irritation to sensitive skin therefore care must be taken to minimise dust formation when handling or cuttingFeature
Features and Benefits• High abrasion and mechanical resistance
• Excellent resistance to chemicals including oils, fluids and aggressive chemical agents
• Halogen free
• 1kV dielectric strength
• Good temperature resistance
• Maintains electrical properties after flexing
• Good resistance to fraying when cut
• Compatible with most insulating varnishes
