MTT Slim Plug-In Distributor with Isolation
#Grup produk P112209522
Spesifikasi
| Input Signal (mA) | 4 to 20 (DC) |
|---|---|
| Output Signal (mA) | 4 to 20 DC (1); 4 to 20 DC (2) |
| Voltage (V) | DC 24 |
| Allowable Voltage Range (V) | DC 24±10% |
| Sensitivity | (Power supply) Within ±0.1% of span for each power supply voltage |
| Insulation Resistance (MΩ) | 100 or more (@500V DC) between input, output 1, output 2, power supply and ground |
| External Dimensions (WxHxD) (mm) | 29x86x125 (including mounting screws and socket terminal block) |
| Input Resistance (ohm) | 250 |
| Material | Terminal block: PBT resin (UL-94V-0) |
| Maximum Power Consumption (W) | 2.4 or less |
| Operating Environment Temperature (°C) | -5 to 55 (5 to 90%RH No Condensation) |
| Power Consumption (W) | 2.4 or less |
| Screw Tightening Torque (N m) | 0.8 to 1 |
| Storage Temperature (°C) | -10 to 60 |
| Surface Treatment | Plug and socket terminals: 0.2 μm/gold plating |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is a thin, plug-in, isolated 1-output/2-output distributor that supplies power to various 2-wire transmitters and converts the 4 to 20 mA feedback loop signal into various DC signals. It can also be used as an isolator.
Warning

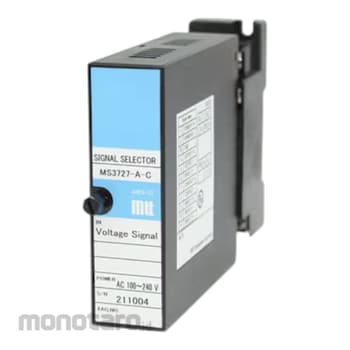

- No moisture-proof coating.- Sample image (please check the specifications of each product number for details)
