- This is a facing type microwave sensor that uses microwaves.
- It is resistant to dirt and is used to detect the level of garbage in hoppers at waste treatment facilities.

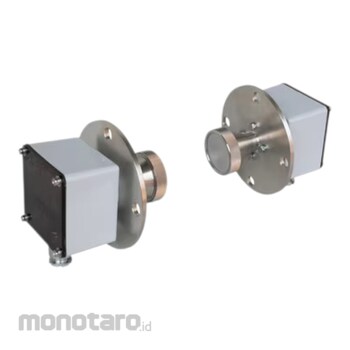

Hokuyo Electric Radio Wave Detector Transmitter
#Grup produk P112209504
Spesifikasi
| Power Consumption (W) | 3 or less |
|---|---|
| Analog Output | DC voltage output (MAX approx. 10V) proportional to the amount of received waves |
| Voltage (V) | DC 24 |
| Control Output | 1C relay contact, relay energized when receiving radio waves (AC250V 4A, DC30V 3A, cosΦ=1) |
| Response Time (s) | 0.1 (Minimum Output) |
| Insulation Resistance (MΩ) | 0 or more (between power supply and output contacts and case) by 250V megger |
| Ambient Humidity (%RH) | 45 to 85 (but no freezing) |
| Ambient Temperature (°C) | -10 to +55 (no freezing) |
| Indicator Light | Unbulock (yellow), Bulock (orange), level indicator (5 yellow lights) |
| Shock Resistance | 196m/s² (20G), 3 times each in X, Y, and Z directions |
| Vibration Resistance (Hz) | 10 to 55, double amplitude 1.5mm, 2 hours each in X, Y, and Z directions |
| Withstand Voltage (V) | AC1,000 for 1 minute (between power supply and output contacts and case) |
