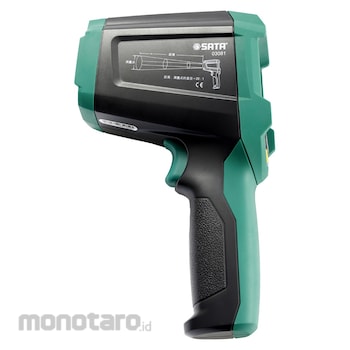

SATA Infrared Thermal Imager
#Grup produk P112198864
Kondisi Barang:
Authorized Partner
Spesifikasi
| Basic Accuracy (°C) | -30~0 accuracy is ±3; 1~100 accuracy is ±2; 101~400 accuracy is ±2%; (Nominal temperature and humidity: 23±2, 50-75%RH) |
|---|---|
| Battery Continuous Working Time (hour) | 6 |
| Charging Time (hour) | 7 |
| Display Type (inch) | 2.4TFT |
| Distance Coefficient Ratio D:S1 | 20:01 |
| Drop Test | 1 meter |
| Field of View (Fov) | 50° |
| Frame Rate | ≤9 |
| Measurement Resolution (°C) | 0.1 |
| Operating Temperature 1 (°C) | 0 to 45 |
| Pixel Size (pm) | 17 |
| Response Time 1 (ms) | 250 |
| Storage Temperature (°C) | -20 ~50 |
| Temperature Coefficient (°C) | ±0.1 / or ±0.1%/ |
| Temperature Range (°C) | -30 ~400 |
| Thermal Image Resolution (pixel) | 80x60 |
| Thermal Imaging Sensitivity (mK) | 150 |
| Wavelength Range (μm) | 8~14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
03081 Infrared Thermal Imager 400℃ Product Introduction ●Quick measurement response, fast thermal imaging speed ●High temperature measurement accuracy, clear thermal imaging images ●Built-in dual laser transmitters, helps to quickly lock the measurement area ●Large-capacity lithium battery power supply, long continuous working time ●With automatic tracking of cold and hot spots, and can set high and low temperature automatic alarm, easy to quickly track temperature anomalies
