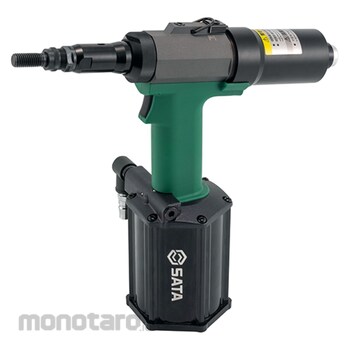

02765 Fully Automatic Pneumatic Hydraulic Rivet Nut Gun M3-M12 Product Description ● The gun head can automatically rotate to insert the rivet nut, quickly pull and automatically push out at high speed ● The riveting stroke can be accurately adjusted according to the thickness of the plate ● Oil-free cylinder, not easy to jam ● The nut pull rod can be quickly replaced without professional tools, easy to maintain ● One-touch reverse button for quick release
1. Bolt tightening capacity refers to bolts with strength grade 12.9 as specified in DIN 267.
2. Noise level refers to the A-level sound pressure level.
3. Operating air pressure refers to the real-time dynamic air pressure measured at the air inlet of the product when the product is idling.
4. Operating torque refers to the actual cumulative torque output after 5 seconds of forward rotation at the operating air pressure.
5. Maximum reverse torque refers to the actual cumulative torque output after 15 seconds of reverse rotation at the operating air pressure.
SATA Automatic Airhydro Lockbolts Tool
#Grup produk P112194123
Kondisi Barang:
Authorized Partner
Spesifikasi
| Applicable Rivet Nut Specification | M3-M12 |
|---|---|
| Gas Consumption per Cycle (L) | 2.76 |
| Max. Working Stroke (mm) | 7 |
| Minimum Tracheal Inner Diameter (mm) | 8 |
| Net Weight (kg) | 2.3 |
| Noise Level (dBa) | 80 |
| Product Size Height (mm) | 298 |
| Product Size Length (mm) | 290 |
| Product Size Width (mm) | 100 |
| Serial Number | 02765 |
| Working Air Pressure (kgf/cm²) | 5~7 |
| Working Tension (N) | 29000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dokumentasi Produk
Ulasan Produk
Tidak ada ulasan
