02311 Composite Material Pistol-Grip Pneumatic Screwdriver Product Introduction ● Composite material shell handle, weighing only 0.9KG ● Fully enclosed forward and reverse reversing button, effectively dustproof ● Spindle, hammer, cam and hammer frame are made of nickel-chromium-molybdenum alloy steel, specially heat-treated ● Stepless speed trigger, easy to start the initial positioning when operating ● It is recommended to use SATA impact-resistant screwdriver bits, see "Screwdrivers and Bits" for details
1. Bolt tightening capacity refers to bolts with strength grade 12.9 as specified in DIN 267.
2. Noise level refers to the A-level sound pressure level.
3. Operating air pressure refers to the real-time dynamic air pressure measured at the air inlet of the product when the product is idling.
4. Operating torque refers to the actual cumulative torque output after 5 seconds of forward rotation at the operating air pressure.
5. Maximum reverse torque refers to the actual cumulative torque output after 15 seconds of reverse rotation at the operating air pressure.

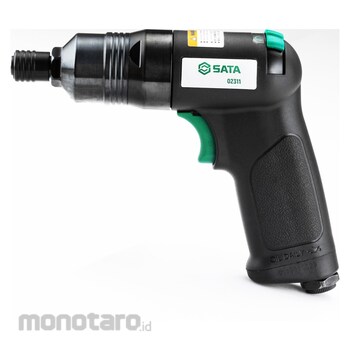

SATA Air Composite Impact Screwdriver
#Grup produk P112193601
Kondisi Barang:
Authorized Partner
Spesifikasi
| Air Inlet Size (inch) | 45661 |
|---|---|
| Average Air Consumption (CFM) | 1.76 |
| Bolt Tightening Capacity | M6 |
| Idle Speed (rpm) | 12500 |
| Maximum Reverse Torque (N m) | 68 |
| Minimum Tracheal Inner Diameter (mm) | 10 |
| Net Weight (kg) | 1 |
| Noise Level (dBa) | 83.6 |
| Output Hexagon (inch) | 1/4 |
| Product Size Height (mm) | 45 |
| Product Size Length (mm) | 220 |
| Product Size Width (mm) | 150 |
| Serial Number | 02311 |
| Working Air Pressure (kgf/cm²) | 6.35 |
| Working Torque (N m) | 50 |
