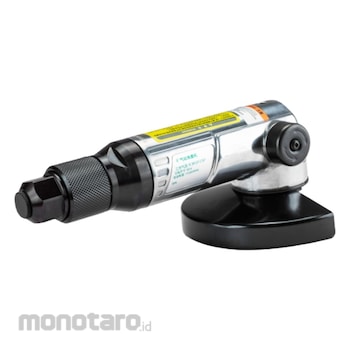

02541 5" Pneumatic Angle Grinder Product Description ● Industrial-grade tool, only suitable for 4.5" or 5" grinding wheels with an inner bore of 22mm ● Scroll bevel gears made of nickel-chromium-molybdenum alloy steel, specially heat-treated, for powerful, smooth and wear-resistant operation ● Motor-coaxial centrifugal speed controller precisely controls motor speed to prevent grinding wheel breakage and injury due to overspeed ● Exhaust hood rotates 360 degrees to avoid exhausting chips and sand dust, which could cause flying debris and injury
1. Bolt tightening capacity refers to bolts with strength grade 12.9 as specified in DIN 267.
2. Noise level refers to the A-level sound pressure level.
3. Operating air pressure refers to the real-time dynamic air pressure measured at the air inlet of the product when the product is idling.
4. Operating torque refers to the actual cumulative torque output after 5 seconds of forward rotation at the operating air pressure.
5. Maximum reverse torque refers to the actual cumulative torque output after 15 seconds of reverse rotation at the operating air pressure.
SATA Air Angle Grinder
#Grup produk P112193522
Kondisi Barang:
Authorized Partner
Spesifikasi
| Air Inlet Size (inch) | 45661 |
|---|---|
| Average Air Consumption (CFM) | 5 |
| Idle Speed (rpm) | 11000 |
| Minimum Tracheal Inner Diameter (mm) | 10 |
| Net Weight (kg) | 2.1 |
| Noise Level (dBa) | 80.6 |
| Output specifications | M14 spindle |
| Product Size Height (mm) | 93 |
| Product Size Length (mm) | 223 |
| Product Size Width (mm) | 196 |
| Serial Number | 02541 |
| Working Air Pressure (kgf/cm²) | 6.35 |
