Compatibility Can be configured to hold a laptop by ordering the accessory Notebook Tray (50-193-200). The arm cannot be retrofitted with a Low-Profile Clamp.
Quality The lift mechanism passed a 10,000-cycle test to ensure years of trouble-free height adjustment.
Design The arm folds back over the base into a compact retracted position, making it perfect for use in space-constrained areas.
Mounting The 2-Piece Clamp attaches to surfaces from 0.47inch to 1.25inch (12 to 32mm) thick. An accessory grommet mount (98-110) is available for through-hole installation. The desk clamp also has anti-rotation screws to prevent the base from slipping.
Weight Capacity Monitor depth greater than 3.5inch (8.9cm) may diminish capacity.
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100x100mm & 75x75mm).
Tilt Range 90° backward and 90° forward.
Pan Range 180° at the base and 360° between the extension and arm. The rotation-stop on the base can be disengaged during installation to achieve a full 360° range.
Extension Range 17.8inch (45cm), with a maximum extension reach of 22.2inch (56cm) from the back of the base to the VESA mounting plate.
Certifications Certified in compliance with ANSI/BIFMA indoor air quality standards for VOC emissions.

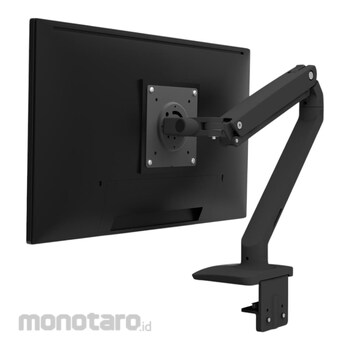

Ergotron MXV Desk Monitor Arm
#Grup produk P112188928
Spesifikasi
| Capacity (kg) | 3.2–9.1 |
|---|---|
| Color | Matte Black |
| Lift (inch) | 13 |
| Pan (°) | 360 |
| Rotation (°) | 360 |
| Screen (inch) | ≤34 |
| Tilt (°) | 180 |
| VESA | MIS-D |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Comfortable fit Offers full monitor movement and improved ergonomics.Full-featured Provides 13inch (33 cm) of height adjustment, integrated tilt and more.
Protect your space Rotation-stop base keeps arm from hitting the wall or other desks.
Fully assembled Just attach to your desk, add your monitor and adjust the tension.
Low profile Attaches securely with a desk clamp that fits in tight areas.
Quality design Built for years of use by passing a 10,000-cycle motion test.
