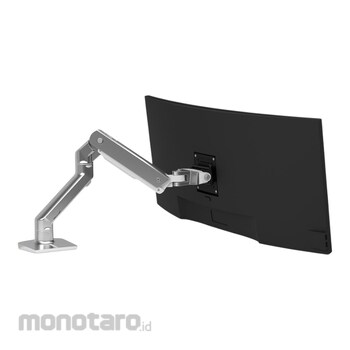

Ergotron HX Desk Monitor Arm

Design The arm folds back over the base into a compact retracted position, which is ideal for space-constrained areas. It features portrait/landscape rotation with a lockout. Streamlined cable management routes cables under the arm and within the extension.
Mounting The desk clamp attaches to a surface edge from 0.4inch to 2.6inch (1 to 6.6cm) thick. The grommet mount attaches through surface holes.
Weight Capacity 20–42lbs (9.1–19.1kg). Display depth greater than 8inch (20cm) may affect the arm’s weight capacity. For curved monitors, consider the arc’s depth to determine compatibility. For displays weighing 28–42lbs (12.7–19.1kg) with a depth of 6inch–12inch (15–30cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is recommended.
Movement Range The monitor can be rotated 360° at the connection point of the arm and extension, but rotation is restricted to 180° at the connection point of the extension and base. The tilt range is 70° backward and 5° forward.
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100x100mm & 75x75mm), MIS-E (hole pattern = 200x100mm), MIS-F (hole pattern = 200x200mm ONLY). The optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interfaces with hole patterns of 400x200mm, 400x300mm, or 400x400mm.
Certifications This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA for VOC emissions.
