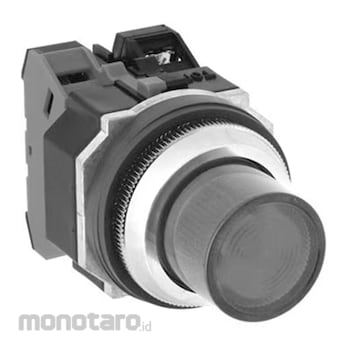

IDEC Phi 30 Zinc Die Cast Series Pilot Light Protruding LED Ba9S
#Grup produk P112184791
Spesifikasi
| Mounting Hole Diameter (mm) | 30.5 (0 to 0.5) |
|---|---|
| Contact Configuration | 1a1b |
| Protective Structure | IP65 |
| Rated Insulation Voltage (V) | 600 |
| Operation Method | Momentary |
| Lamp Voltage (V) | AC/DC 24 |
| Ambient Humidity (%RH) | 45 to 85 (no condensation) |
| Ambient Temperature (°C) | -25 to 55 (but do not freeze) |
| Contact Resistance (miliΩ) | 50 or less (initial value) |
| Emitting Color | Blue |
| Impact Resistance Durability (m/s²) | 1000 |
| Operation Part Shape | Round (protruding) |
| Shock Resistance Malfunction (m/s²) | 100 |
| Storage Temperature (°C) | -40 to 80 (but do not freeze) ; Ambient : -25 to 70 (but do not freeze) |
| Vibration Resistance Durability (Hz) | 30, single amplitude 1.5mm |
| Vibration Resistance Malfunction (Hz) | 5 to 55, single amplitude 0.5mm |
| Withstand Voltage (V/minute) | AC2000 (between live part and earth) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*Sample image (please check the specifications of each product number for details)Ulasan Produk
