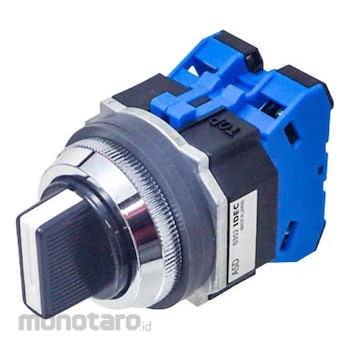

IDEC Phi 30 Zinc Die Cast Series ASD Type/Arrow Shaped Handle Selector Switch
#Grup produk P112184773
Spesifikasi
| Mounting Hole Diameter (mm) | 30.5 (0 to 0.5) |
|---|---|
| Rated Current (A) | 10 |
| Rated Insulation Voltage (V) | 600 |
| Number of Notches | 3 |
| Contact Configuration | 2a |
| Terminal Shape | M3.5 screw terminal |
| Ambient Humidity (%RH) | 45 to 85 (no condensation) |
| Ambient Temperature (°C) | -25 to 70 (but do not freeze) |
| Electrical Life (10000times) | 50 or more (switching frequency 1200 times/hour, switching at 40% usage) (load condition AC220V 3A (AC-15)) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | Over 100 (DC500V Mega) |
| Mechanical Life (10000times) | 50 and over |
| Shock Resistance Malfunction (m/s²) | 100 |
| Storage Temperature (°C) | -40 to 80 (but do not freeze) ; Ambient : -25 to 70 (but do not freeze) |
| Terminal Cover | Integrated type |
| Withstand Voltage (V/minute) | AC2500 (between live and non-live parts) / AC2000 (pilot light AC/DC 6V, 12V, 24V) |
