Extra-miniature, miniature and small ball bearings of this type have flanges on their outer rings to make positioning in the axial direction easy, and they achieve economy by eliminating the need to spotface the housing edges.
This type is ideal for parts that require high-speed rotation, low-friction torque and low-vibration/noise for devices that should be smaller, thinner and lighter-weight.
EZO Ball Bearing SMR Type
#Grup produk P112179054
Spesifikasi

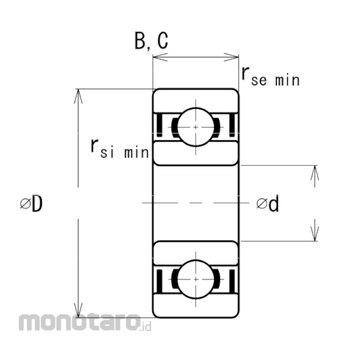

| Abutment and Fillet Dimension Da Max. (mm) | 4.5 |
|---|---|
| Abutment and Fillet Dimension Da Min. (mm) | 4.5 |
| Abutment and Fillet Dimensions da Max. (mm) | 2.6 |
| Abutment and Fillet Dimensions da Min. (mm) | 2.6 |
| Abutment and Fillet Dimensions rase Max. (mm) | 0.1 |
| Abutment and Fillet Dimensions rasi Max. (mm) | 0.1 |
| Ball Size (mm) x Quantity | 0.800x6 |
| Basic Dynamic Load Rating Cr (N) | 144 |
| Basic static load rating Cor (N) | 40 |
| Bore Diameter d (mm) | 2 |
| Inner Ring Chamfer Dimension (rsi min) (mm) | 0.1 |
| Inner Ring Width B (mm) | 2.5 |
| Limiting Speeds-Grease (min1) | 94000 |
| Limiting Speeds-Oil (min1) | 111000 |
| Outer Diameter d (mm) | 5 |
| Outer Ring Chamfer Dimension (rse min) (mm) | 0.1 |
| Outer Ring Width C (mm) | 2.5 |
