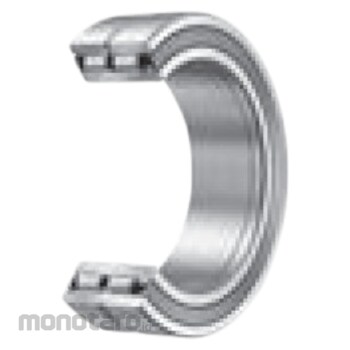

IKO Roller Bearings in which rollers are incorporated in two rows are non-separable heavy-duty bearings. They can withstand not only radial loads but axial loads as well, which are supported at the contacts between the shoulders of inner and outer rings and the end faces of rollers. Therefore, they are most suitable for use at the fixing side of a shaft. Like needle roller bearings, they are also compact.
Roller bearings include the caged type, full complement type and the type for sheaves, and any bearings suitable for the operating conditions can be selected. In particular, these bearings are used for heavy-duty machines such as construction machinery, and industrial machinery.
IKO Needle Roller Bearing NAG Series
#Grup produk P112177560
Spesifikasi
| Allowable Rotation Speed (rpm) | 3000 |
|---|---|
| Basic Dynamic Load Rating C (N) | 34600 |
| Basic Static Load Rating C0 (N) | 49500 |
| Dimension C (mm) | 22 |
| Dimension D (mm) | 62 |
| Dimension EW (mm) | 56 |
| Dimension J (mm) | 46 |
| Dimensions d (mm) | 40 |
| Dimensions rₛ min⁽¹⁾ (mm) | 0.6 |
| Shaft Diameter (mm) | 40 |
