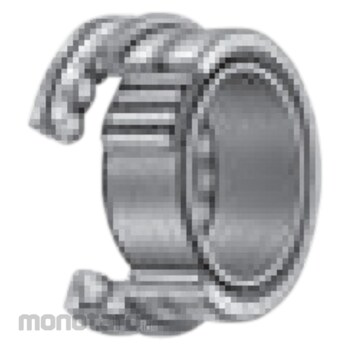

IKO Combined Needle Roller Bearing NAXI Series
#Grup produk P112177445
Spesifikasi
| Allowable Rotational Speed | 4000 |
|---|---|
| Assembled Inner Ring | LRT 506025 |
| Basic Dynamic Load Rating C (Axial) (N) | 41400 |
| Basic Dynamic Load Rating C (Radial) (N) | 47500 |
| Basic Static Load Rating C0 (Axial) (N) | 89700 |
| Basic Static Load Rating C0 (Radial) (N) | 103000 |
| Dimension B (mm) | 25.5 |
| Dimension D (mm) | 72 |
| Dimension Fw (mm) | 60 |
| Dimension H (mm) | 17 |
| Dimension L (mm) | 40 |
| Dimension L1 (mm) | 12 |
| Dimension rₛ min⁽¹⁾ (mm) | 1 |
| Dimensions D₁ (mm) | 85 |
| Dimensions D₂ (mm) | 86.5 |
| Dimensions db (mm) | 59 |
| Dimensions di (mm) | 60 |
| Dimensions dₐ Min. (mm) | 75 |
| Dimensions r₁ₛ min⁽¹⁾ (mm) | 1 |
| Shaft Diameter (mm) | 50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
