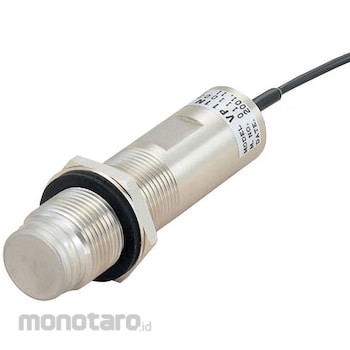

Noken Pulse Vibration Level Sensor for Powders VP Type
#Grup produk P112173607
Spesifikasi
| Material | (Vibration Plate) SUS316, (Electric wire outlet) PC, (Main body) SUS304, (Cable) Soft PVC |
|---|---|
| Control Output | NPN open collector output (activates when detected) |
| Current Consumption | (mA) 20 or less (24V DC) |
| Display | (Power/Operation Indicator) Power/non-detection indicator: Green light; Power/detection indicator: Red light; Power/recovery delay indicator: Orange light |
| Installation Method | Screw mounting |
| Measurement Fluid | Powders and granules (diameters of 5mm or less can be detected) |
| Mounting screws | G3/4 |
| Power Supply Voltage (V) | 24DC (18-30DC) |
| Pressure Resistance (kPa) | 500 (excluding mounting part) |
| Specific gravity measurement range | Apparent specific gravity 0.2 or more |
| Structure | IP55 equivalent |
| Switching capacity (A) | 100mA Max. (residual voltage 1V or less) |
| Vibration Resistance | 10-55Hz, double amplitude 1.5mm |
| usage environment | (Temperature) -10 to 60 (no condensation), (Humidity) 95% RH |
