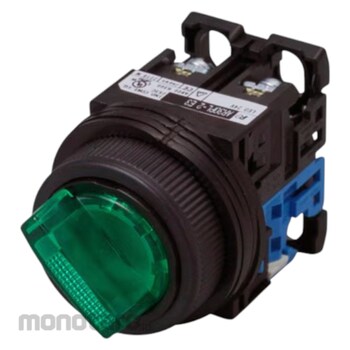

Fuji Electric Illuminated Selector Switch
#Grup produk P112165705
Spesifikasi
| Type | Standard |
|---|---|
| Material | Illumination Selector |
| Protective Structure | IP65 (oil proof type) |
| Contact Configuration | 1a |
| Withstand Voltage (V) | Between live parts and earth/between live parts of different polarity: AC2000 for 1 minute |
| Rated Insulation Voltage (V) | AC/DC 250 |
| Ambient Temperature Range (°C) | -20 to 50 (no freezing or condensation) |
| Electrical Durability | Over 100,000 times (at AC220V 0.33A) |
| Insulation Resistance (MΩ) | Between live parts and earth/between live parts of different polarities: 100 or more (DC 500V megger) |
| Lamp Voltage (V) | AC/DC 24 |
| Method | All voltage types |
| Mounting Dimensions (mm) | phi 30.5 |
| Notch Angle (°) | 90 |
| Number of Notches | 2 |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated operating current (A) | AC-15 (coil load): 24V/6, 110V/6, 220V/6, 440V/2.5, 550V/2; DC-13 (coil load): 24V/4, 110V/1.3, 220V/0.45; DC-12 (resistive load): 24V/6, 110V/2.5, 220V/1 |
| Relative Humidity (%RH) | Inside the panel: 45 to 85°C (-5 to 40°C) (no freezing or condensation) |
| Terminal Screws | M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting) |
