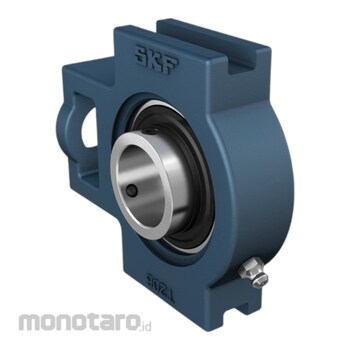

SKF Take-Up Cast Iron Unit TUJ Series
#Grup produk P112164487
Spesifikasi
| Angular Position of the Housing Thread (Rα) (°) | 30 |
|---|---|
| Axial Position of the Housing Thread (R1) (mm) | 5.5 |
| Basic Dynamic Load Rating (kN) | 52.7 |
| Basic Static Load Rating (kN) | 36 |
| Bearing Material | Bearing steel |
| Bearing Width, Total (mm) | 65.1 |
| Bore Diameter (D) (mm) | 60 |
| Bore Type | Cylindrical |
| Coating | Without |
| Compliance with Standard | JIS |
| Diameter of Attachment Bolt Hole (N) (mm) | 35 |
| Diameter of Head Sphere of Grease Fitting (DN) (mm) | 6.5 |
| Distance between Bottoms of Piloting Grooves (H1) (mm) | 130 |
| Distance from Attachment End Face to Centre Line of Spherical Seat Diameter (L1) (mm) | 118 |
| Distance from Locking Device Side Face to Raceway Centre (s1) (mm) | 39.7 |
| Distance from Locking Device Side Face to Thread Centre (B4) (mm) | 10 |
| Fatigue Load Limit (Pu) (kN) | 1.53 |
| Grease Fitting | With |
| Height of Attachment End (H2) (mm) | 102 |
| Height of Attachment Slot (N2) (mm) | 63.5 |
| Hexagonal Key Size for the Grease Fitting (SWN) (mm) | 7 |
| Housing Overall Width (mm) | 60 |
| Housing Thread for the Grease Fitting (RG) | 1/4-28 UNF |
| Housing Type | Take-up |
| Length Attachment End (L2) (mm) | 19 |
| Length of Attachment Slot (N1) (mm) | 32 |
| Length of Piloting Groove (L3) (mm) | 100 |
| Limiting Speed (r/minute) | 3400 |
| Lubricant | Grease |
| Material | Cast iron |
| Material, Housing | Cast iron |
| Overall Height (H) (mm) | 146 |
| Overall Length L (mm) | 186 |
| Overall Width (A) (mm) | 60 |
| Relubrication Hole | With |
| Retaining Feature, Inner Ring | Set screws |
| Rubber Seating Ring | Without |
| Sealing Type | Contact, standard |
| Sealing, Bearing | Seal and flinger on both sides |
| Sealing, Unit | Without |
| Set Screw (G2) | M10x1 |
| Shaft Diameter (mm) | 60 |
| Shoulder Diameter of Inner Ring (d1) (mm) | ≈75.64 |
| Thread of Grease Fitting (GN) | 1/4-28 SAE-LT |
| UNSPSC | 31171536 |
| Width of Flange in Which Piloting Grooves are Provided (A2) (mm) | 44 |
| Width of Inner Ring B (mm) | 65.1 |
| Width of Piloting Groove (A1) (mm) | 22 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a (set) screw on the inner ring, which makes it easy to mount.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Designed for an alternating rotation; Quick and easy to mount onto the shaft; Accommodate static initial misalignment; Long service life; Reduced noise and vibration levelsProduk Terpopuler
