SKF Take-Up Cast Iron Unit TU Series
#Grup produk P112164469
Spesifikasi
| Angular Position of the Housing Thread (Rα) (°) | 30 |
|---|---|
| Bearing Material | Bearing steel |
| Bore Type | Cylindrical |
| Coating | Without |
| Compliance with Standard | ISO |
| Diameter of Head Sphere of Grease Fitting (DN) (mm) | 6.5 |
| Grease Fitting | With |
| Hexagonal Key Size for the Grease Fitting (SWN) (mm) | 7 |
| Housing Thread for the Grease Fitting (RG) | 1/4-28 UNF |
| Housing Type | Take-up |
| Lubricant | Grease |
| Material | Cast iron |
| Material, Housing | Cast iron |
| Relubrication Hole | With |
| Rubber Seating Ring | Without |
| Sealing Type | Contact, standard |
| Sealing, Unit | Optional end cover |
| Thread of Grease Fitting (GN) | 1/4-28 SAE-LT |
| UNSPSC | 31171536 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

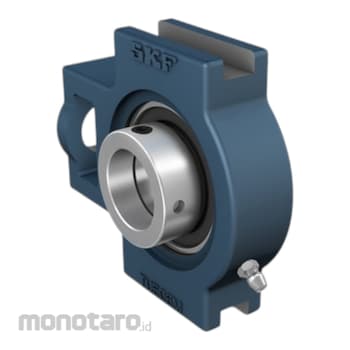

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Designed for rotation in one direction; Quick and easy to mount onto the shaft; Accommodate static initial misalignment; Long service life; Reduced noise and vibration levelsUlasan Produk
