SKF Square Flanged Housing FY Series
#Grup produk P112164362
Spesifikasi
| Coating | Without |
|---|---|
| Depth of Centring Recess (A3) (mm) | 3.2 |
| Diameter of Head Sphere of Grease Fitting (DN) (mm) | 6.5 |
| Fastening Bolt Hole Type | Plain |
| Flanged Housing Type | Square |
| Grease Fitting | With |
| Hexagonal Key Size for the Grease Fitting (SWN) (mm) | 7 |
| Housing Thread for Grease Fitting (RG) | 1/4-28 UNF |
| Housing Type | Flanged |
| Material | Cast iron |
| Material, Housing | Cast iron |
| Number of Bolt Holes for Fasteners | 4 |
| Recommended Diameter for Dowel Pins (N4) (mm) | 4 |
| Relubrication Hole | With |
| Thread of the Grease Fitting (GN) | 1/4-28 SAE-LT |
| UNSPSC | 31171536 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

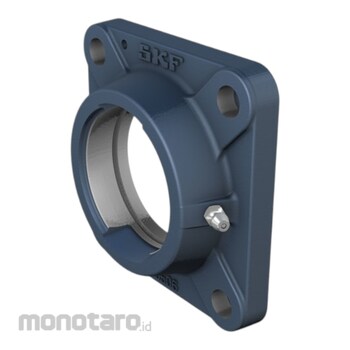

These square flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Resist high levels of contamination; Accommodate relatively heavy loadsUlasan Produk
