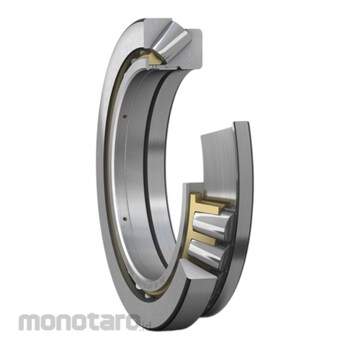

SKF Spherical Roller Thrust Bearing With Machined Metal Cage
#Grup produk P112164308
Spesifikasi
| Basic Dynamic Load Rating (kN) | 799 |
|---|---|
| Basic Static Load Rating (kN) | 3450 |
| Bore Diameter (D) (mm) | 240 |
| Bore Diameter (mm) | 240 |
| Bore Type | Cylindrical |
| Cage | Machined brass |
| Candidate for Remanufacturing | Yes |
| Chamfer Dimension Shaft Washer (r1,2) (mm) | min.2.1 |
| Diameter of Housing Abutment (Da) (mm) | max.308 |
| Diameter of Shaft Abutment (da) (mm) | min.290 |
| Distance from Shaft Washer End Side Face to Pressure Point (s) (mm) | 130 |
| Fatigue Load Limit (Pu) (kN) | 335 |
| Fillet Radius (ra) (mm) | max.2 |
| Height (H) (mm) | 60 |
| Height (mm) | 60 |
| Height Housing Washer (C) (mm) | 30 |
| Height Shaft Washer + Cage (B1) (mm) | 57 |
| Limiting Speed (r/minute) | 1800 |
| Locating Feature, Housing Washer | None |
| Outside Diameter (D) (mm) | 340 |
| Outside Diameter (mm) | 340 |
| Outside Diameter of Shaft Washer End Side Face (d1) (mm) | ≈330 |
| Reference Speed (r/minute) | 1100 |
| Shoulder Diameter Outer Ring D1 (mm) | ≈283 |
| Tolerance Class | Normal |
| UNSPSC | 31171507 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
High load carrying capacity; Can accommodate combined loads; Allow misalignment or create very stiff bearing arrangements; Long service life and low friction; Separable designUlasan Produk
