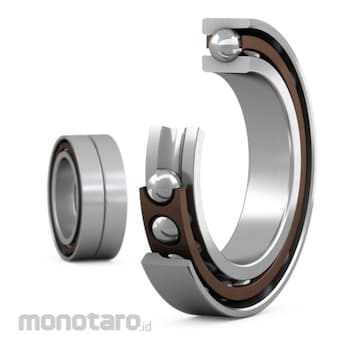

SKF Single Row Angular Contact Ball Bearing ACD/P4ADBB Series
#Grup produk P112164186
Spesifikasi
| Basic Dynamic Load Rating (kN) | 52 |
|---|---|
| Basic Static Load Rating (kN) | 45.5 |
| Bearing Material | Bearing steel |
| Bore Diameter (D) (mm) | 40 |
| Bore Diameter (mm) | 40 |
| Chamfer Dimension (r1,2) (mm) | min.1.1 |
| Chamfer Dimension (r3,4) (mm) | min.0.6 |
| Coating | Without |
| Contact Angle (°) | 25 |
| Contact Angle (α) (°) | 25 |
| Contact Type | Normal contact (two-point contact) |
| Design | High-capacity D |
| Diameter of Housing Abutment (Db) (mm) | max.75.8 |
| Diameter of Shaft Abutment (da) (mm) | min.47 |
| Fatigue Load Limit (Pu) (kN) | 1.96 |
| Lubricant | None |
| Matched Arrangement | Back-to-back <> |
| Matched Condition (axial clearance/preload) | Light preload |
| Number of Rows | 2 |
| Number of bearings in matched set | 2 |
| Outside Diameter (D) (mm) | 80 |
| Outside Diameter (mm) | 80 |
| Position of Oil Nozzle (dn) (mm) | 56.2 |
| Radius of Fillet (ra) (mm) | max.1 |
| Radius of Fillet (rb) (mm) | max.0.6 |
| Reference Grease Quantity (per Bearing) (Gref) (cm³) | 4.725 |
| Ring Type | One-piece inner and outer rings |
| Sealing | Without |
| Shoulder Diameter of Inner Ring (Large Side Face) (d1) (mm) | 53.3 |
| Tolerance Class | P4A |
| UNSPSC | 31171531 |
| Universal Matching Bearing | No |
| Width (B) (mm) | 36 |
| Width (mm) | 36 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Very high running accuracy; Very high load carrying capacityUlasan Produk
