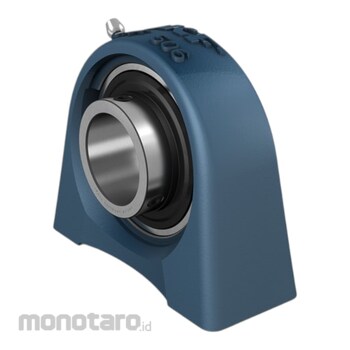

SKF Short Base Pillow Block Ball Bearing SYF Series
#Grup produk P112164122
Spesifikasi
| Angular Position of the Housing Thread (Rα) (°) | 45 |
|---|---|
| Bearing Material | Bearing steel |
| Bore Type | Cylindrical |
| Coating | Without |
| Diameter of Head Sphere of Grease Fitting (DN) (mm) | 6.5 |
| Fastening Bolt Hole Type | Threaded |
| Grease Fitting | With |
| Hexagonal Key Size for the Grease Fitting (SWN) (mm) | 7 |
| Housing Thread for the Grease Fitting (RG) | 1/4-28 UNF |
| Housing Type | Pillow block, short base |
| Lubricant | Grease |
| Material | Cast iron |
| Material, Housing | Cast iron |
| Number of Bolt Holes for Fasteners | 2 |
| Relubrication Hole | With |
| Rubber Seating Ring | Without |
| Sealing Type | Contact, standard |
| Sealing, Unit | Without |
| Thread of Grease Fitting (GN) | 1/4-28 SAE-LT |
| UNSPSC | 31171536 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Strong; Ready to mount; Designed for a constant and alternating rotation; Lubricated and sealed bearing; High degree of stiffness; Narrow designUlasan Produk
