SKF Rod End SIKAC Series
#Grup produk P112164043
Spesifikasi
| Angle of Tilt (α) (°) | 15 |
|---|---|
| Attachment Feature, Rod End Shank | Right-hand female thread |
| Basic Dynamic Load Rating (kN) | 21.6 |
| Basic Static Load Rating (kN) | 29 |
| Bore Diameter (D) (mm) | 16 |
| Bore Diameter, Bearing Inner Ring (mm) | 16 |
| Centre Height, Housing (from end of shank) (mm) | 64 |
| Chamfer Dimension Bore (r1) (mm) | min.0.3 |
| Diameter Head (d2) (mm) | max.43 |
| Distance Shank Chamfer - Centre Rod End Eye (l7) (mm) | min.21 |
| Height Shank End Face - Centre Rod End Eye (h1) (mm) | 64 |
| Housing Diameter Shank (d3) (mm) | ≈22 |
| Housing Diameter Shank (d4) (mm) | max.29 |
| Housing Length, Total (mm) | 86 |
| Length (Height) Housing (l4) (mm) | max.86 |
| Length Thread (l3) (mm) | min.24 |
| Length Wrench Flat (l5) (mm) | ≈8 |
| Maintenance | Relubrication required |
| Material, Housing | Steel |
| Material, Inner Ring | Bearing steel |
| Outside Diameter, Housing Eye (mm) | 43 |
| Raceway Diameter Inner Ring (dk) (mm) | 28.575 |
| Sealing | Without |
| Size Wrench (w) (mm) | 22 |
| Sliding Contact Surface Combination | Steel/bronze |
| Thread | M 16x1.5 |
| Thread Designation | M 16x1.5 |
| UNSPSC | 31171508 |
| Width Head (C1) (mm) | max.15.5 |
| Width Inner Ring B (mm) | 21 |
| Width, Bearing Inner Ring (mm) | 21 |
| Width, Housing Eye (mm) | 15.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

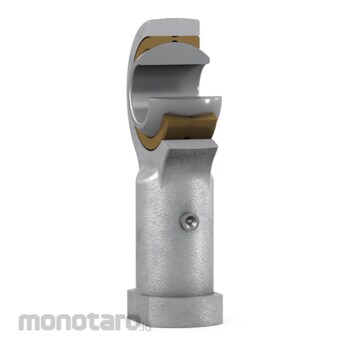

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Suitable where lubricant starvation might occur; Simple and ready-to-mount; Easy to relubricate (sizes ≥ 6)Ulasan Produk
