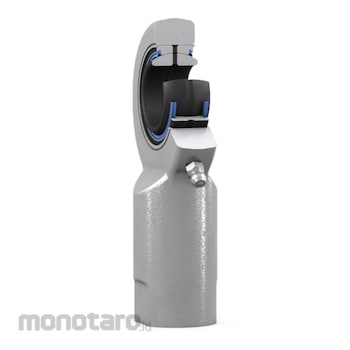

SKF Rod End SIA Series
#Grup produk P112164025
Spesifikasi
| Angle of Tilt (α) (°) | 6 |
|---|---|
| Attachment Feature, Rod End Shank | Right-hand female thread |
| Basic Dynamic Load Rating (kN) | 156 |
| Basic Static Load Rating (kN) | 270 |
| Bore Diameter (D) (mm) | 50 |
| Bore Diameter, Bearing Inner Ring (mm) | 50 |
| Centre Height, Housing (from end of shank) (mm) | 160 |
| Chamfer Dimension Bore (r1) (mm) | min.0.6 |
| Diameter Head (d2) (mm) | max.114 |
| Diameter Shank (d4) (mm) | ≈70 |
| Distance Shank Chamfer - Centre Rod End Eye (l7) (mm) | min.58 |
| Height Shank End Face - Centre Rod End Eye (h1) (mm) | 160 |
| Housing Length, Total (mm) | 219 |
| Length (Height) Housing (l4) (mm) | max.219 |
| Length Thread (l3) (mm) | min.68 |
| Length Wrench Flat (l5) (mm) | ≈30 |
| Maintenance | Relubrication required |
| Material, Housing | Steel |
| Material, Inner Ring | Bearing steel |
| Material, Outer Ring | Bearing steel |
| Outside Diameter, Housing Eye (mm) | 114 |
| Raceway Diameter Inner Ring (dk) (mm) | 66 |
| Sealing | Seal on both sides |
| Sealing Type | Double-lip |
| Size Wrench (w) (mm) | 60 |
| Sliding Contact Surface Combination | Steel/steel, standard |
| Thread | M 45x3 |
| Thread Designation | M 45x3 |
| UNSPSC | 31171508 |
| Width Head (C1) (mm) | max.31 |
| Width Inner Ring B (mm) | 35 |
| Width, Bearing Inner Ring (mm) | 35 |
| Width, Housing Eye (mm) | 31 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SIA series).
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Long service life; Minimal maintenance; Easy to relubricate; Suitable for heavy static, alternating or impact loads; Simple and ready-to-mountUlasan Produk
