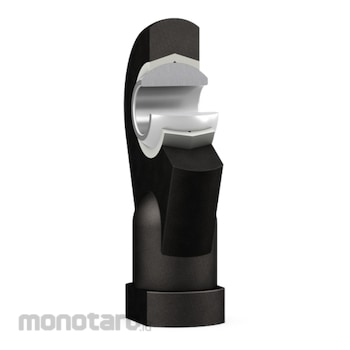

SKF Rod End SFILK Series
#Grup produk P112163983
Spesifikasi
| Attachment Feature, Rod End Shank | Left-hand female thread |
|---|---|
| Basic Dynamic Load Rating (kN) | 1.8 |
| Basic Static Load Rating (kN) | 2.55 |
| Bore Diameter, Bearing Inner Ring (mm) | 6 |
| Centre Height, Housing (from end of shank) (mm) | 30 |
| Housing Length, Total (mm) | 42.5 |
| Maintenance | Maintenance-free |
| Material, Housing | Composite |
| Material, Inner Ring | Bearing steel |
| Outside Diameter, Housing Eye (mm) | 25 |
| Sealing | Without |
| Sliding Contact Surface Combination | Steel/PTFE FRP |
| Thread Designation | M 6 |
| UNSPSC | 31171508 |
| Width, Bearing Inner Ring (mm) | 9 |
| Width, Housing Eye (mm) | 6.75 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The housing is made of a glass fibre reinforced polyamide, the inner ring is available in different materials. The female thread is available with a left- (prefix SFILK) or right-hand thread.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Lightweight composite housing; Long service life, maintenance-free; Relatively insensitive to contaminants; Low coefficient of friction; Simple and ready-to-mountUlasan Produk
