SKF Rod End SCF Series
#Grup produk P112163947
Spesifikasi
| Angle of Tilt (α) (°) | 9 |
|---|---|
| Attachment Feature, Rod End Shank | Rectangular section, for welding |
| Basic Dynamic Load Rating (kN) | 30 |
| Basic Static Load Rating (kN) | 63 |
| Bore Diameter (D) (mm) | 20 |
| Bore Diameter, Bearing Inner Ring (mm) | 20 |
| Centre Height, Housing (from end of shank) (mm) | 38 |
| Chamfer Dimension Bore (r1) (mm) | min.0.3 |
| Diameter Head (d2) (mm) | max.51.5 |
| Height Shank End Face - Centre Rod End Eye (h2) (mm) | 38 |
| Housing Length, Total (mm) | 64.5 |
| Length (Height) Housing (l6) (mm) | max.64.5 |
| Maintenance | Relubrication required |
| Material, Housing | Steel |
| Material, Inner Ring | Bearing steel |
| Material, Outer Ring | Bearing steel |
| Outside Diameter, Housing Eye (mm) | 51.5 |
| Raceway Diameter Inner Ring (dk) (mm) | 29 |
| Sealing | Without |
| Sliding Contact Surface Combination | Steel/steel, standard |
| UNSPSC | 31171508 |
| Width Head (C1) (mm) | max.20 |
| Width Inner Ring B (mm) | 16 |
| Width, Bearing Inner Ring (mm) | 16 |
| Width, Housing Eye (mm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

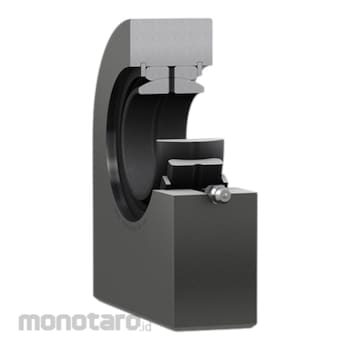

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Suitable for heavy static, alternating or impact loads; Easy to relubricate; Bearing can be exchangedUlasan Produk
