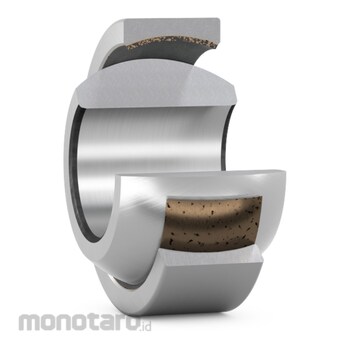

SKF Radial Spherical Plain Bearing GEH Series
#Grup produk P112163840
Spesifikasi
| Angle of Tilt (α) (°) | 18 |
|---|---|
| Basic Dynamic Load Rating (kN) | 11.4 |
| Basic Static Load Rating (kN) | 28.5 |
| Bore Diameter (D) (mm) | 10 |
| Bore Diameter (mm) | 10 |
| Chamfer Dimension Bore (r1) (mm) | min.0.3 |
| Chamfer Dimension Outer Ring (r2) (mm) | min.0.3 |
| Fillet Radius Housing (rb) (mm) | max.0.3 |
| Fillet Radius Shaft (ra) (mm) | max.0.3 |
| Maintenance | Maintenance-free |
| Material, Inner Ring | Bearing steel |
| Material, Outer Ring | Steel |
| Maximum Abutment Diameter Housing (Da) (mm) | 20.6 |
| Maximum Abutment Diameter Shaft (da) (mm) | 13.4 |
| Minimum Abutment Diameter Housing (Da) (mm) | 17.1 |
| Minimum Abutment Diameter Shaft (da) (mm) | 11.6 |
| Outside Diameter (D) (mm) | 22 |
| Outside Diameter (mm) | 22 |
| Raceway Diameter Inner Ring (dk) (mm) | 18 |
| Relubrication Feature | Without |
| Sealing | Without |
| Sliding Contact Surface Combination | Steel/PTFE sintered bronze |
| UNSPSC | 31171515 |
| Width (B) (mm) | 12 |
| Width Outer Ring (mm) | 7 |
| Width Outer Ring C (mm) | 7 |
| Width, Inner Ring (mm) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Designed for radial and combined radial and axial loads; Long service life and maintenance-free; Suitable for heavy, constant direction loads; Low coefficient of friction; High operating temperatures; High sliding velocities and small operating clearancesUlasan Produk
