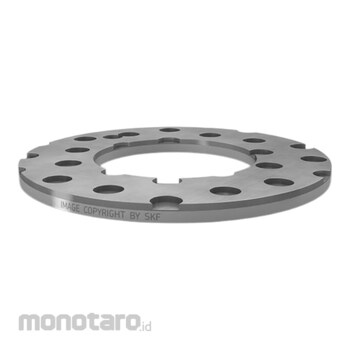

SKF POM Composite Thrust Washer
#Grup produk P112163804
Spesifikasi
| Basic Dynamic Load Rating (kN) | 176 |
|---|---|
| Basic Static Load Rating (kN) | 365 |
| Bore Diameter (D) (mm) | 32 |
| Bore Diameter (mm) | 32 |
| Bore Diameter Housing (Da) (mm) | 54 |
| Depth Housing Bore (Ha) (mm) | 1 |
| Diameter Fixing Bore (K) (mm) | 4.25 |
| Height (mm) | 1.5 |
| Material | POM composite |
| Outside Diameter (D) (mm) | 54 |
| Outside Diameter (mm) | 54 |
| Pitch Diameter Housing (Ja) (mm) | 43 |
| Pitch Diameter of Attachment Bolt Holes (J) (mm) | 43 |
| Thickness (H) (mm) | 1.5 |
| UNSPSC | 31171605 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SKF POM composite thrust washers are suitable for rotating and oscillating movements, and can accommodate heavy axial loads. They have as standard a hole to take a pin or screw to prevent the washers from rotating on their seat. After an initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Cost-effective with long service life; Very good frictional properties; High load carrying capacity; High sliding velocityUlasan Produk
