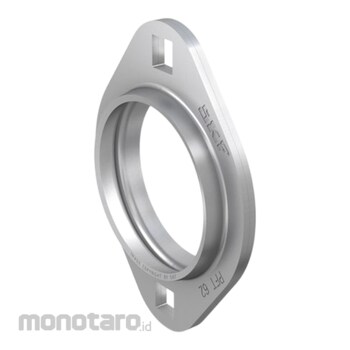

SKF Oval Flanged Pressed Steel Housing PFT Series
#Grup produk P112163743
Spesifikasi
| Abutment Diameter (H2) (mm) | min.44 |
|---|---|
| Centre Distance Between Bolt Holes (J) (mm) | 63 |
| Centre Distance Between Bolt Holes (mm) | 63 |
| Coating | Zinc-coated |
| Diameter of Attachment Bolt Hole (N) (mm) | 7.1 |
| Diameter of Spherical Seat (Da) (mm) | 40 |
| Fastening Bolt Hole Type | Plain |
| Flanged Housing Type | Oval |
| Grease Fitting | Without |
| Housing Overall Width (mm) | 14 |
| Housing Type | Flanged |
| Material Thickness (A4) (mm) | 2 |
| Material, Housing | Pressed steel |
| Number of Bolt Holes for Fasteners | 2 |
| Overall Height (H) (mm) | 81 |
| Overall Length L (mm) | 59 |
| Permissible Radial Load (kN) | max.2.5 |
| Recommended Diameter for Attachment Bolts (inch) | 0.25 |
| Relubrication Hole | Without |
| Spherical Seating Diameter (mm) | 40 |
| UNSPSC | 31171536 |
| Width Housing Half (A2) (mm) | 7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Oval flanged pressed steel housing for insert bearings are lightweight and made from cold-rolled steel, and are zinc-coated for corrosion protection. The housings are cost-effective and designed for simple applications with light loads. The two-part housing, which has no provision for relubrication, can be ordered separately from the insert bearing, making a large number of combinations possible.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Lightweight; Cost-effective; Flexible bearing and housing combinations; Simple to mount; Protection against corrosionUlasan Produk
