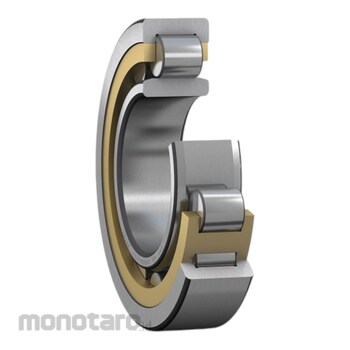

SKF NU ECML/P63 Type Single Row Cylindrical Roller Bearings
#Grup produk P112163682
Spesifikasi
| Axial Displacement Capability | In both directions |
|---|---|
| Basic Dynamic Load Rating (kN) | 122 |
| Basic Static Load Rating (kN) | 118 |
| Bearing Part | Complete bearing |
| Bore Diameter (mm) | 65 |
| Bore Type | Cylindrical |
| Cage | Machined brass |
| Coating | Without |
| Limiting Speed (r/minute) | 10000 |
| Locating Feature, Bearing Outer Ring | None |
| Loose Flange | None |
| Lubricant | None |
| Number of Flanges, Outer Ring | 2 |
| Number of Rows | 1 |
| Outside Diameter (mm) | 120 |
| Radial Internal Clearance | C3 |
| Reference Speed (r/minute) | 6300 |
| Relubrication Feature | Without |
| Sealing | Without |
| Tolerance Class | Class 6 (P6) |
| UNSPSC | 31171505 |
| Width (mm) | 23 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
High radial load carrying capacity; Low friction; Long service life; Accommodate axial displacement in both directions; Separable designUlasan Produk
