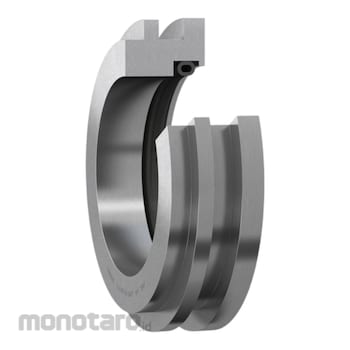

SKF Labyrinth Seal TSN Series
#Grup produk P112163628
Spesifikasi
| Accessory Type | Housing seal |
|---|---|
| Diameter of Seal Groove (Dc) (mm) | 167.5 |
| Distance to Side Face (c) (mm) | 14 |
| Housing Groove Diameter (mm) | 167.5 |
| Material | Steel with silicone element |
| Outside Diameter (D) (mm) | 165 |
| Outside Diameter (mm) | 165 |
| Sealing Type | Labyrinth |
| Shaft Diameter (da) (mm) | 110 |
| Shaft Diameter (mm) | 110 |
| UNSPSC | 31171519 |
| Width (B) (mm) | 24 |
| Width (mm) | 24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Good protection from contamination; Keep the lubricant in the housing; Part of the three barrier solution; Cost-effectiveUlasan Produk
